As analytical systems continue becoming larger and more complex, separating data into organized processing layers has become increasingly important. Modern enterprise environments rarely deal with a single source system or a single reporting workflow anymore. Instead, data usually moves through multiple stages before it becomes ready for analytics and business reporting.
This is where the Medallion Architecture has become extremely useful in modern data engineering.
The core idea behind the architecture is simple: separate the data lifecycle into dedicated layers, where each layer has a clear responsibility. Instead of combining ingestion, cleansing, transformation, and reporting into one large workflow, the process becomes structured and easier to manage operationally.
This layered approach improves:
- Maintainability
- Scalability
- Debugging
- Governance
- Operational Isolation
Raw source data remains separated from cleansed business data, while reporting models stay isolated from ingestion complexity. This creates a much cleaner architecture compared to older monolithic ETL systems where everything is tightly coupled together.
Implementing the Medallion Architecture in Microsoft Fabric
The Medallion Architecture fits naturally into Microsoft Fabric, where Lakehouses, Warehouses, Pipelines, Dataflows, Spark, and Power BI exist inside the same ecosystem.

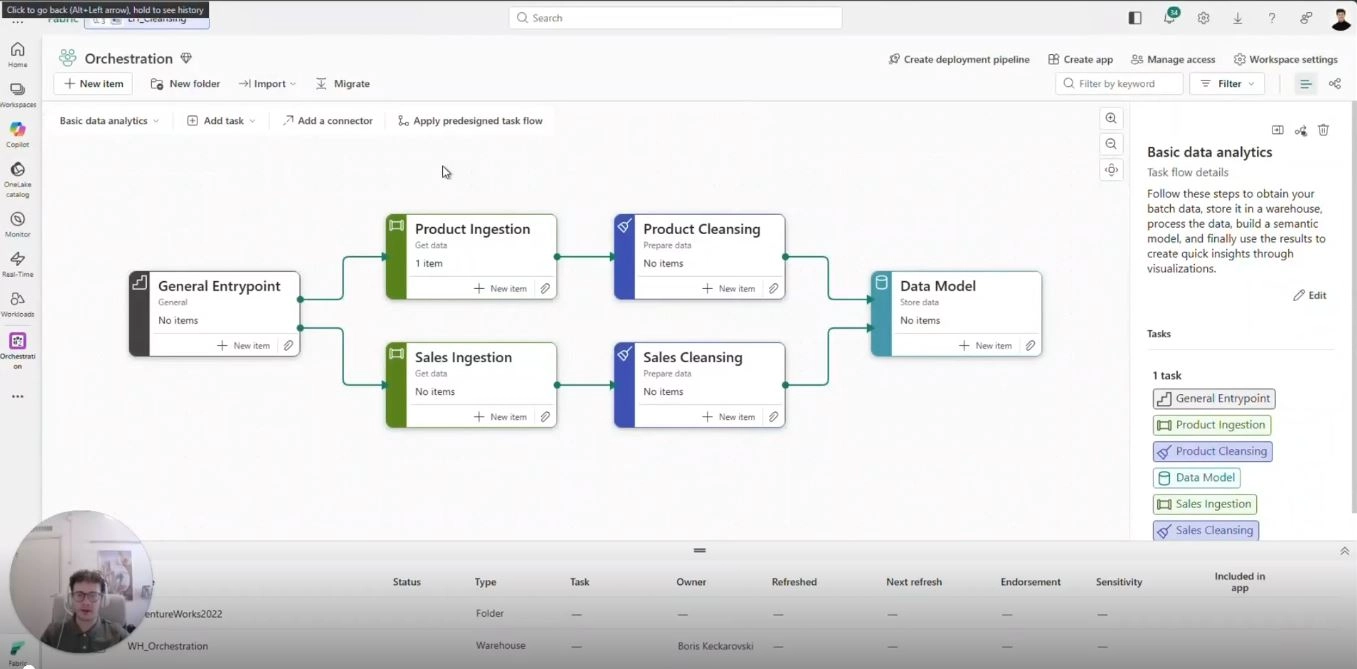

A common implementation in Fabric may look like this:
| Layer | Purpose | Platform Component |
|---|---|---|
| Bronze - Ingestion | Raw ingestion and staging of source data | Lakehouse |
| Silver - Cleansing | Data cleansing, and standardization | Lakehouse + Warehouse |
| Gold - Reporting | Business - ready reporting and analytical consumption | Lakehouse + Warehouse |
One of the biggest advantages of this structure is the clear separation between operational stages. Ingestion remains isolated from business transformations, while reporting models remain separated from raw source-system complexity. This makes troubleshooting and maintenance significantly easier as environments continue scaling.
Ingestion through Dataflows and Transformation through SQL
In the Bronze layer, ingestion is commonly handled through Dataflows Gen2, especially for structured enterprise ingestion workloads. Dataflows provide a simpler and more maintainable low-code approach for connecting to multiple data sources, applying lightweight transformations, and loading data into a Lakehouse. They also integrate naturally with orchestration pipelines and are generally easier to maintain for teams working heavily with structured business data.
Notebook-based ingestion using Spark is still a strong option in certain scenarios, especially when working with:
- Very large-scale distributed processing
- Unstructured or semi-structured data
- Advanced Python transformations
- Machine learning workloads
- Complex file manipulation
However, for many enterprise ingestion pipelines focused on relational and reporting workloads, Dataflows can often provide a cleaner and faster operational experience with less engineering overhead.
The Silver and Gold layers are frequently handled through Warehouse-based transformations using T-SQL stored procedures. This approach works particularly well for structured reporting systems where the data model is heavily relational and optimized around dimensional modeling principles.
Using the SQL engine for cleansing and reporting transformations introduces several advantages:
- Easier debugging
- Strong compatibility with dimensional modeling
- Tighter integration with BI tools and relational reporting models
- Reduced operational overhead compared to distributed compute environments
- Easier governance and control over business logic
Compared to Spark-based transformation pipelines, stored procedure driven architectures can also reduce unnecessary complexity for many reporting-focused workloads. While Spark remains extremely powerful for distributed compute and large-scale data processing, not every enterprise reporting pipeline requires distributed execution.
One of the biggest advantages of the Medallion approach overall is operational isolation. Ingestion problems, transformation issues, and reporting layer failures can usually be identified much faster because each stage remains separated into its own dedicated layer rather than tightly coupled together inside a single workflow.
